Timetrax Model 70 Watch Clock Beat Amplifier Diagnostic Tool w/ PICKUP Sensor For Sale

Timetrax Model 70 Watch Clock Beat Amplifier Diagnostic Tool w/ PICKUP SensorWhen you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Timetrax Model 70 Watch Clock Beat Amplifier Diagnostic Tool w/ PICKUP Sensor:
$79.95

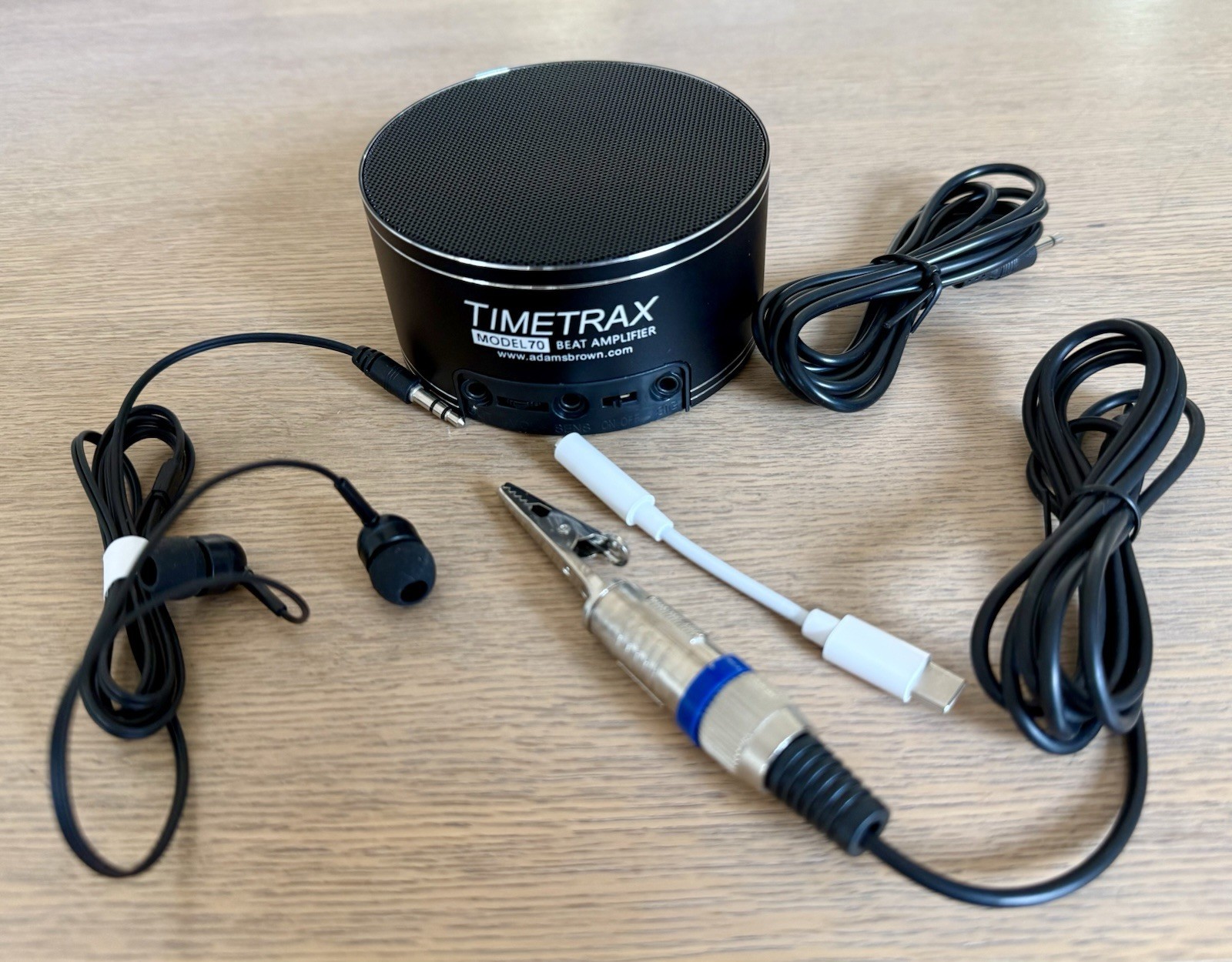

THIS sale is for the Timetrax 70 amplifier PLUS the Model 20 Sensor Pickup included ! Once again, this sale comes with the SENSOR. This sale does not come with a smartphone, It doesnot come with a clock.It does not come with any software.It does NOT come with an oscilloscope. Included in this sale is ONE (1 piece) of Timetrax Model 70 beat amplifier, 1 pc. Timetrax Model 20 clip on sensor, 1 pc interface cable to connect to your PC or Smartphone external microphone input jack, 1 set of headphones, 1 pc USB C adapter cable.

Brand New Design withlarge 3 1/2 inch diameter speaker. This unit is much louder and more powerful than any beat amplifier we have ever built. Runs on 3 pcs AA Alkaline Batteries (not included) compatible with the Timetrax Model 20clip on sensor (INCLUDED) for beat amplifiers and timing machines. 90 dayNO-HASSLE Guarantee! I have been PERSONALLY making these since the early 1980's and this design is my own invention. Included in this sale is ONE (1 piece) of Timetrax Model 70 beat amplifier, 1 pc. Model 20 clip on sensor pickup, 1 pc interface cable to connect to your PC or Smartphone external microphone input jack. 1 pc USB C adapter & 1 set earphones S/H/I is FREE for all Domestic USA shipments. If you are an International Customer please be advised that this item may be subject to local Customs/Duty/VAT etc... If you are overseas and your Country imposes any of these add on fees, you will be responsible. Made by Adams Brown Company, Cranbury NJ 08512, Thanks for Looking !

The Timetrax Model 70 unit is a high impedance, high gain sensor amplifier capable of detecting ticking sounds from a mechanical escapement. It is specificallydesigned to work with our legendary Timetrax Model 20 clip on Sensor for clocks which is included with the unit. It is also compatible with the Timetrax Model 100 watch sensor w/vise (optional, not included). The robust construction includes aproprietary custom injection molded ABS case with an extruded anodized aluminum outer shell. The underside of the housing has the battery compartment with a removable battery door providing the user with accessto replace/install 3XAA Alkaline batteries (not included) that power theunit. An electronic, digitally controlled gain control allows the amplitude of the sound level from the speaker to be adjusted.Another new feature in this unit are the pair of signal output jacks and interface cables. One set is a specially designed cable output that plugsdirectly into your smartphone or PC external microphone input jack. This provides you with a means to use public domain timing machine software/Apps together with a precision, highly sensitive pickup. In addition, you can plugthe set of earphones INCLUDED. This providesyou with the option to listen to and adjust the beat of thetimepiece through the privacy of your headphones as the speaker output is disconnected once the cable or earphone plug is installed.

Unpack the unit, cables, and sensor from the box. Turn the unit upside down, unclip the latchon the battery door, and install 3XAA Alkaline batteries (not included) noting the polarity. The unit comes with cables: Sensor Pickup w/ cable, an External

Cable for use with PC/Smart Phone external Microphone Jack, and a USB C adapter as well.Keep. your unit clean, and dry. Avoid directsunlight, high temperatures, or extreme cold. Since there is a large, open speaker grill that is on the top of the unit, avoid liquid spills at alltimes. Use only ALKALINE batteries. Be sure to use fresh batteries as old, worn down batteries will cause the voltage in the unit to drop to undesired levels and may cause a “squeal” sound in the speaker.

Warranty claims as well as other repairs will not be made on any unit returned that shows evidence of leaking batteries or customer modifications to the unit of any kind. Only use the interface cable supplied with this unit to connect to your device.

Basic Beat Amplifer using built in speaker

a). Plug in the sensor cable into the center input jack of the unit and Sensor end with the Alligator Clip on the movement under test. Completely unwrap the sensor cable and extend it to its full length. Locate the unit as far away from the ticking sound of the movement under test to minimize coupling and response. This is very important as you do not want sound from the speaker being picked up by the sensor and creating a positive response.

b). Adjust the volume control with your finger tip by sliding the toggle left or right. Louder is to the right, Softer to the left. You can slide and hold the toggle to automatically increase or decrease the volume. Or you can slide it one step at a time to achieve the desired sound level.

Basic Beat Amplifer with Earphones Included

Plug in your earphones to the output jack on the left. This will connect sound to the earphones and will disconnect the speaker. Note: when using headphones you do not need to worry about maximizing the separation distance between the movement and the speaker.

Beat Amplifier Connected to Smart Phone or PC external microphone input. Plug in the interface cable supplied with the unit. Be careful which end you plug into the Timetrax and the Phone/PC. NOTE: when you plug the cable into the LEFT output the speaker is disconnected similar to Mode 2. The Smart Phone/PC end is the stereo plug with the multiple rings, while the Timetrax end is the single ring plug. Plug the single ring plug into the OUTPUT Jack of the amplifier on the LEFT side. Plug the multiple ring plug into your PC/Smart Phone using the USB C adapter included if needed.

Adjust the input level control on your PC/Smart Phone to achieve desired signal strength. If the signal is too strong, reduce the setting of the volume control on the Amplifier. An even lower signal strength can be achieved by switching to the output jack on the RIGHT side of the Amplifier, While the RIGHT output is the low level millivolt signal used to interface to Instrumentation such as an Oscilloscope it can be used with some phones/cable from any other manufacturer

Sound/Voice Recorder:

Virtually every Smart Phone, PC has an App/Program that allows you to record sound. It might be called the “Sound Recorder” or “Voice Recorder.” You can use that piece of software to test the input levels in your system. This is a good “first step” prior to using the device with a Timing Machine App or PC Software. Once you have verified the connection, sound levels including play back, you are ready to use the Timetrax Model 70 with your Timing Machine Software of your choice. There are many Apps available for Android, Windows, iOs, Mac etc. Adams Brown Company does not provide that software and we do not make specific recommendations or provide technical support for third party software.

Adams Brown Company Inc. warrants the Timetrax 70 to be free of defects for a period of 90 days after purchase. Adams Brown Company will repair/replace the unit/sensor/cables at it’s discretion. Address all warranty questions/claims/returns to Adams Brown Company, Box 357, Cranbury NJ 08512. C. 2026 Adams Brown Company, Inc. All rights
