STETSOM HL 2000.4 2000W RMS 4 Channel Full Range Class D Digital Amplifier For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

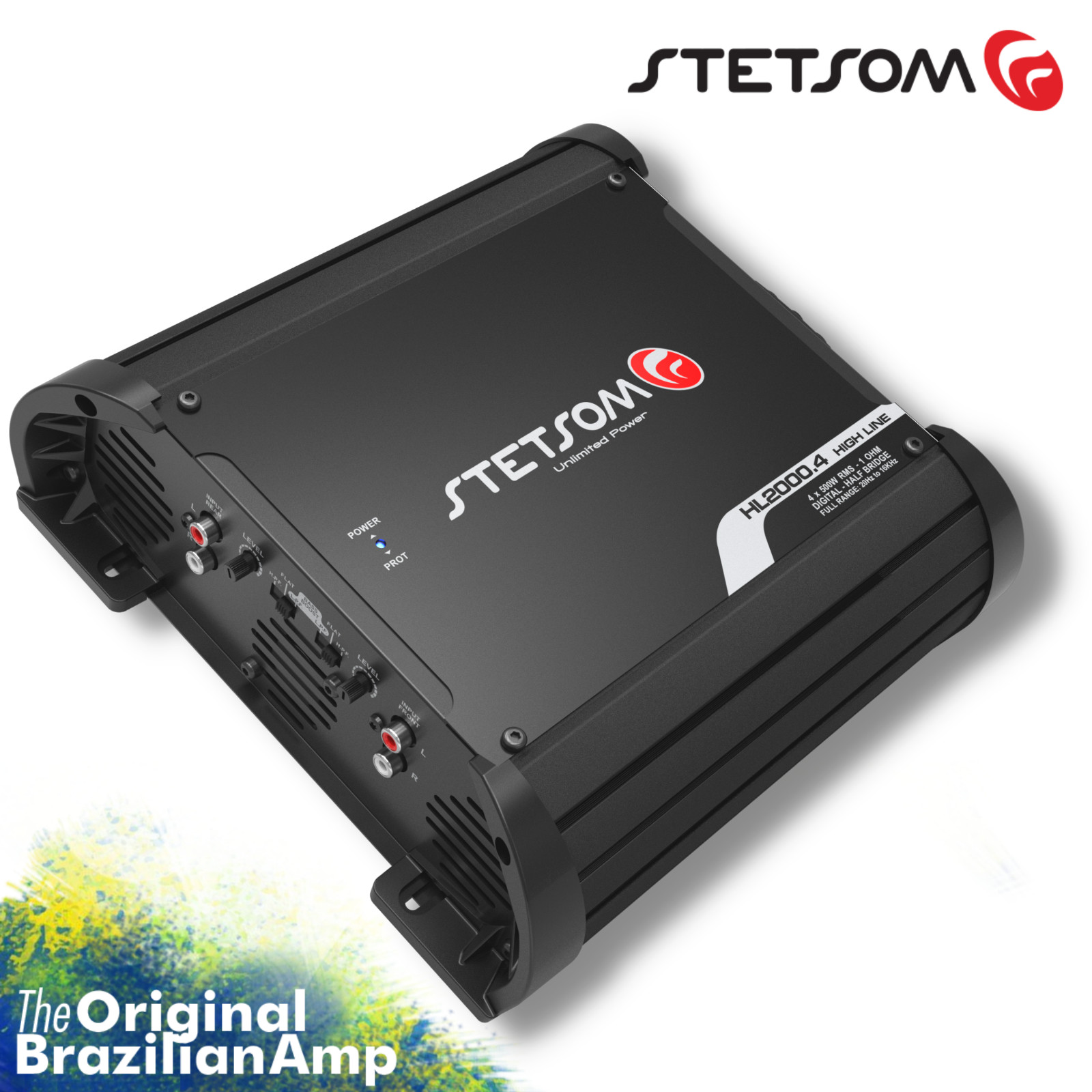

STETSOM HL 2000.4 2000W RMS 4 Channel Full Range Class D Digital Amplifier:
$298.99

TECHNICAL SPECS (1 Ohm):

Number of Channels: 4
RMS Power in 1 Ohm 12.6V: 4 x 435W RMS (STEREO)
RMS Power in 2 Ohms 12.6V: 4 x 280W RMS (STEREO)
RMS Power in 1 Ohm 14.4V: 4 x 545W RMS (STEREO)
RMS Power in 2 Ohms 14.4V: 4 x 365W RMS (STEREO)
Power @ 12.6V Bridge 2 Ohms: 2 x 870W RMS (BRIDGE)
Power @ 14.4V Bridge 2 Ohms: 2 x 1100W RMS (BRIDGE)
Power Supply: 9 ~ 15V
Frequency Response @8 Ohms (-3dB): 20Hz ~ 26KHz
Bass Boost (Low Pass): +12 dB
Low Pass Crossover: 90 Hz
High Pass Crossover: 90 Hz
Signal to Noise Ratio: > 90 dB
Harmonic Distortion: > 0.3% THD
Input Sensitivity: 200mV
Input Impedance: 15 kOHMS
Minimum Output Impedance: 1 OHMS (STEREO) / 2 OHMS (BRIDGE)
Musical Signal Consumption: 97A
Bass Signal Consumption: 194A
Dimensions (H x W x L): 3” x 9.2” x 9.4”
Weight: 6.1 lb

TECHNICAL SPECS (2 Ohms):

Number of Channels: 4
RMS Power in 2 Ohms 12.6V: 4 x 500W RMS (STEREO)
RMS Power in 4 Ohms 12.6V: 4 x 290W RMS (STEREO)
RMS Power in 2 Ohms 14.4V: 4 x 561W RMS (STEREO)
RMS Power in 4 Ohms 14.4V: 4 x 338W RMS (STEREO)
Power @ 12.6V Bridge 4 Ohms: 2 x 1000W RMS (BRIDGE)
Power @ 14.4V Bridge 4 Ohms: 2 x 1080W RMS (BRIDGE)
Power Supply: 9 ~ 15V
Frequency Response @8 Ohms (-3dB): 20Hz ~ 26KHz
Bass Boost (Low Pass): +12 dB
Low Pass Crossover: 90 Hz
High Pass Crossover: 90 Hz
Signal to Noise Ratio: > 90 dB
Harmonic Distortion: > 0.3% THD
Input Sensitivity: 200mV
Input Impedance: 15 kOHMS
Minimum Output Impedance: 2 OHMS (STEREO) / 4 OHMS (BRIDGE)
Consumption with Musical Signal: 96A
Bass Signal Consumption: 192A
Dimensions (H x W x L): 3” x 9.2” x 9.4”
Weight: 5.9 lb

Download Manual
